Raw Material → Thawing → Conveying → Evisceration → Washing → Conveying → Cooking (Steaming) → Cooling → Removal of Head, Tail, and Bones (including red meat removal) → Conveying → Plate Loading → Can Filling → Weighing & Correction → Sauce Addition → Vacuum Sealing Machine → Can Washing Machine → Cage Loading → Sterilization → Cage Unloading → Inspection → Labeling → Coding → Boxing → Warehousing

Send Inquiry

Product Description

📋 Production Process (Raw Material: Tuna)
Raw Material ➝ Thawing ➝ Conveying ➝ Evisceration ➝ Washing ➝ Conveying ➝ Cooking (Steaming) ➝ Cooling ➝ Removal of Head, Tail, and Bones ➝ Conveying ➝ Plate Loading ➝ Can Filling ➝ Weighing & Correction ➝ Sauce Addition ➝ Vacuum Sealing Machine ➝ Can Washing Machine ➝ Cage Loading ➝ Sterilization ➝ Cage Unloading ➝ Inspection ➝ Labeling ➝ Coding ➝ Boxing ➝ Warehousing
⚙ Equipment List
No. Equipment Name Model/Specification Quantity Remarks
1Steaming Box2200*1500*2200mm1 setSUS304
2Steaming Cart930 × 880 × 1600mm6 unitsSUS304
3Spray Cooling Chamber–1 setSUS304
4Red Meat Removal Conveyor6 × 1.5 × 1.4 m1 unitSUS304
5Fish Meat Metal Detector–1 unitSUS304
6Fish Meat Disintegrator–1 unitSUS304
7Weighing & Can Filling (Manual)6000*1400*1500
8Soup Adding Conveyor2000*700*1600mm1 unitSUS304
9Canned Sealing Machine30 cans/min1 unitCast Iron
10Transfer Conveyor–1 unitSUS304
11In-Can Washing Machine–1 unitSUS304
12Manual Cage Loading/Unloading Machine–1 setSUS304
13Sterilization Pot1 setSUS304
14Sterilization Basket– (4 pieces)4 piecesSUS304
15Chain Conveyor50 m–Tentative
16Drying Machine–1 unitSUS304
17Coding Machine–1 unitShanghai
18Labeling Machine–1 unitTianjin
19Boxing Conveyor1000*2000*900mm1 unitSUS304
20Empty Can Stacker–1 unitSUS304
21Magnetic Can Washing Machine–1 unitSUS304
22Soup Mixing Tank150 L2 unitsSUS304
23Sanitary Pump3 T/h2 unitsFood-Grade
24Piping, Valves– (1 set)–Tentative
25Control Electrical Cabinet– (1 sets)1 setsSchneider

Important Notes:

1. The piping and valves connecting the equipment are not included in this quotation. They will be quoted separately after the workshop layout plan is finalized.

2. Except for equipment manufactured by the designated suppliers mentioned in the remarks, all other equipment is produced by our factory.

3. The final detailed list will be verified after the workshop layout plan is completed.

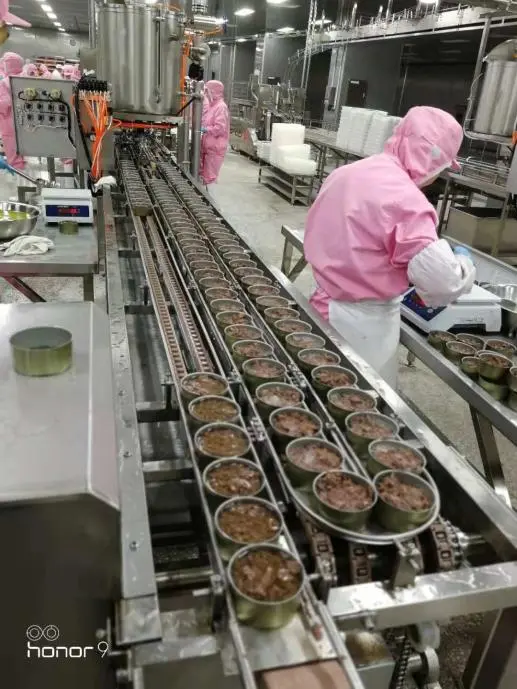

Production Equipment Layout 1

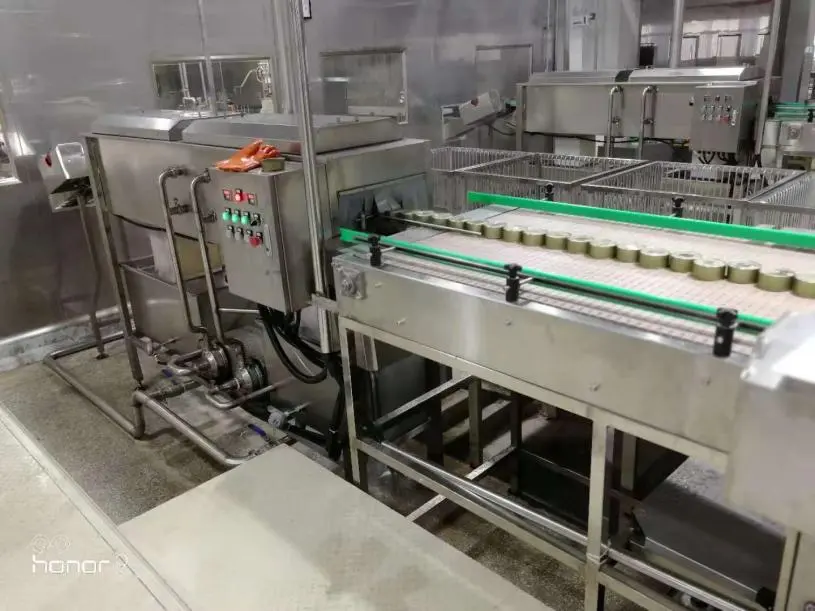

Production Equipment Layout 2
❓ Frequently Asked Questions
What is the primary material used for the tuna canning equipment?
Most of the equipment, including the steaming box, conveyors, and mixing tanks, are constructed from high-quality SUS304 stainless steel to ensure food safety and durability.
Are installation components like piping and valves included in the standard list?
Piping and valves are not included in the initial quotation. These will be provided as a separate quote once the specific workshop layout and market material prices are confirmed.
Does the production line include quality control mechanisms?
Yes, the line includes essential inspection stages such as a Fish Meat Metal Detector, weighing & correction stations, and a final inspection process before labeling and boxing.
What is the capacity of the Canned Sealing Machine?
The specified Canned Sealing Machine in this line operates at a speed of approximately 30 cans per minute.
Can the equipment list be adjusted for my specific factory layout?
Absolutely. The final detailed equipment list and layout plan will be verified and finalized only after the workshop layout plan is completed to ensure a perfect fit for your facility.
What brands are used for the electrical control components?
The control electrical cabinets utilize high-quality components from reputable brands like Schneider to ensure reliable operation and easy maintenance.
